Unitized and Stick Curtain Wall Systems
Engineered Façade Solutions for Every
Overview
Comprehensive curtain wall solutions tailored to your project needs
At Al Abbar Group, we understand that every building has unique requirements. That’s why we offer both unitized and stick-built curtain wall systems, each engineered to deliver optimal performance for specific building types and architectural challenges.
From intimate storefronts to soaring high-rises, our curtain wall solutions combine structural integrity, thermal efficiency, and aesthetic excellence. With decades of experience and rigorous testing standards, we deliver façade systems to anticipate tomorrow’s building needs.
Our Curtain
Wall Systems
Choosing the right
system for your project

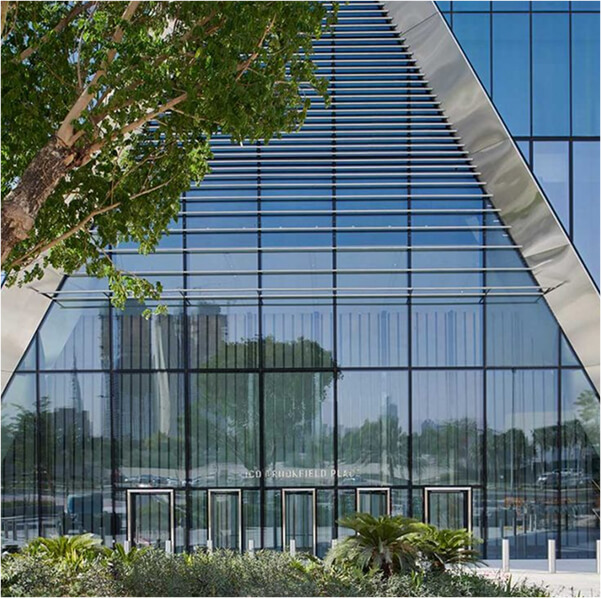

Stick-Built Systems
Perfect for Low-Rise & Accessible Façades
Ideal for storefronts, podium façades, and low-rise buildings where accessibility allows for efficient on-site assembly. These systems offer flexibility and cost-effectiveness for projects with straightforward access requirements.
Key Features:
- Dry sealed façades with EPDM inner gaskets
- Wet sealed joints with silicone or toggle fixings
- Ventilated and pressure equalized systems
- Thermal transmittance U < 1.6 W/m²K
- Acoustic performance up to RW = 48dB
- Easy maintenance via scaffolding or lifts

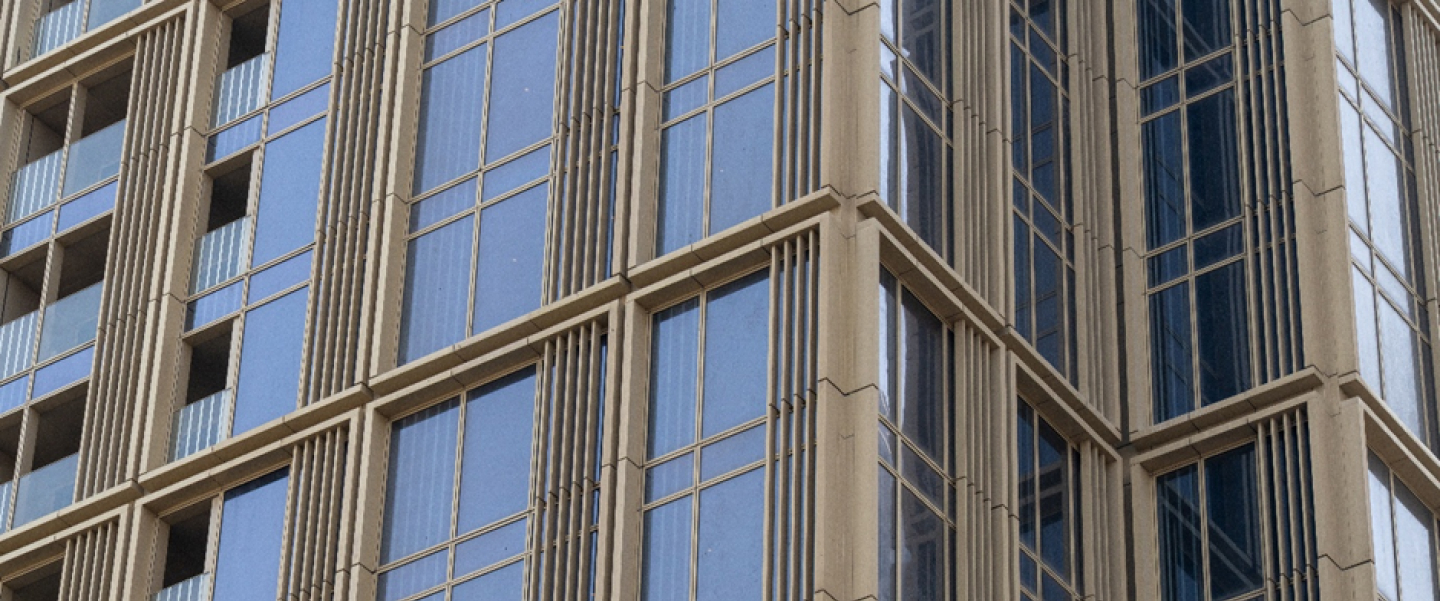

Unitized Systems
Engineered for High-Rise Excellence
Factory-assembled large units combining structural framing and glazing, designed for efficient installation on high-rise buildings. These systems excel where access is limited and precision installation
is critical.
Key Features:
- Interior or exterior structural glazing options
- Factory assembly and glazing for quality control
- Typical units: 4000mm H x 1500mm W
- Double glazed with inner safety glass
- Accommodates thermal and structural movement
- Fire safe and smoke safe sealing systems
Engineering & Tech Excellence
Durability, safety
& structural reliability
Structural Performance & Load Management
Structural Performance & Load Management
Our curtain wall systems are engineered to handle all structural demands while allowing necessary building movement.
Load Transfer Systems
Specialized brackets transfer dead, wind, live, seismic, and maintenance loads safely to the main building structure while accommodating differential movement.
Movement Accommodation
Advanced design allows thermal expansion, wind pressure effects, and structural movement without compromising performance or integrity.
Connection Engineering
Unit hooks and brackets engineered for differential movement resistance while maintaining structural stability under all loading conditions.
Thermal & Acoustic Performance
Thermal & Acoustic Performance
Superior environmental performance through advanced glazing systems and thermally broken frame design.
Thermal Optimization
Overall thermal transmittance achieved through high-performance glazing, thermally broken frames, and optimized perimeter details.
Acoustic Excellence
Sound performance primarily driven by glazing selection and infill panels, with acoustic laminated options available for demanding environments.
Energy Efficiency
Advanced systems contribute to building energy performance through optimized solar heat gain control and superior insulation properties.
Safety & Fire Performance
Safety & Fire Performance
Comprehensive safety systems ensuring occupant protection and regulatory compliance.
Fire Compartmentalization
Fire safe and smoke safe seals between units and slabs/partitions ensure proper compartmentalization between floors and adjacent spaces.
Glass Safety Systems
Inner safety glass options include fully tempered or heat soak tested glass for maximum occupant protection and code compliance.
Spandrel Solutions
Shadow boxes and back pan insulation systems provide fire protection while maintaining aesthetic continuity across the façade.
Engineering & Tech Excellence
Our curtain wall systems are rigorously tested and
certified to exceed international performance standards.
< 1.6 W/m²K
Thermal Transmittance (U-Value)
RW = 48dB
Acoustic Performance Rating
4000 x 1500mm
Standard Unitized Dimensions
ISO 17025
Accredited Testing Standards
