Mixed-Use DevelopmentsProjectsResidential

Dubai, UAE

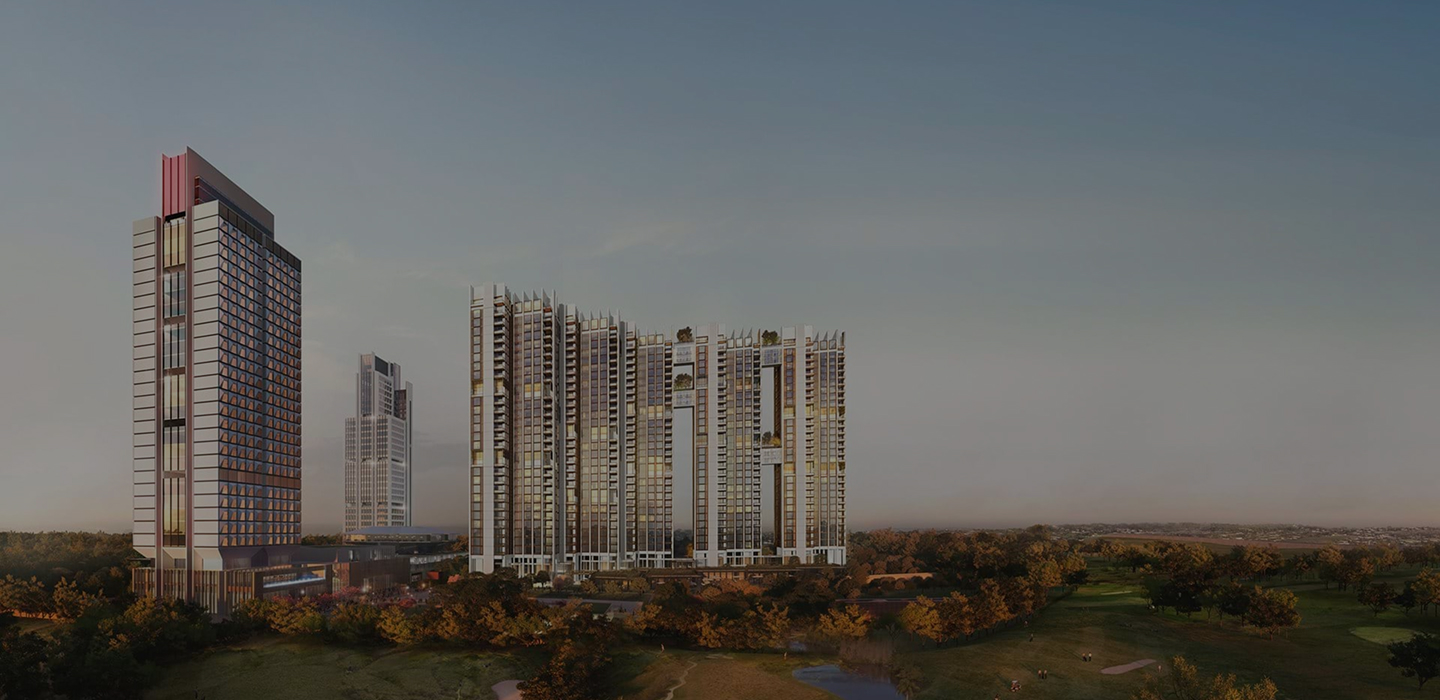

Ireo Towers

  • Height
    Hotel Tower: 140 m Office tower: 143.3 m
  • Sqm Facade Area
    Hotel: 18,500 sqm Office: 22,600 sqm
  • Status
    Ongoing
  • Architect/Consultant
    Meinhardt Facade Tech. Pte. Ltd.
Overview

More than a tower –
a global icon

Scope of work: Includes the design, supply, manufacture, and installation of 18,500 sqm of unitised curtain wall glazing for the hotel tower and 22,600 sqm for the office tower, enhancing the buildings’ aesthetics, energy efficiency, and functionality.

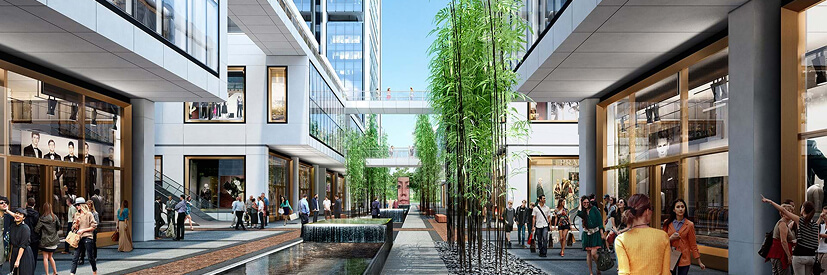

Ireo Hospitality City is located east of Gurgaon, on the outskirts of New Delhi. The development features a 30-story office tower with sky gardens and terraces, housing the Ireo headquarters. To the south, the 397-room Grand Hyatt Hotel is accessed through a 17-meter-high atrium, offering expansive views of the surrounding landscape, combining modern architecture with green spaces for both business and leisure.

Key data

Impressive metrics that define
this extraordinary achievement

  • LOCATION

    Gurgaon, India

  • PROJECT TYPE

    Residential, Mixed-Use Developments

  • CLIENT/ DEVELOPER

    IREO Hospitality Company Pvt. Ltd.

  • ARCHITECT

    Meinhardt Facade Tech. Pte. Ltd.

  • MAIN CONTRACTOR

    Shapoorji Pallonji

  • DATE OF AWARD

    2015

  • DATE OF COMPLETION

    Ongoing

Technical details

Brief insights
about the project

Unitised Curtain Wall System

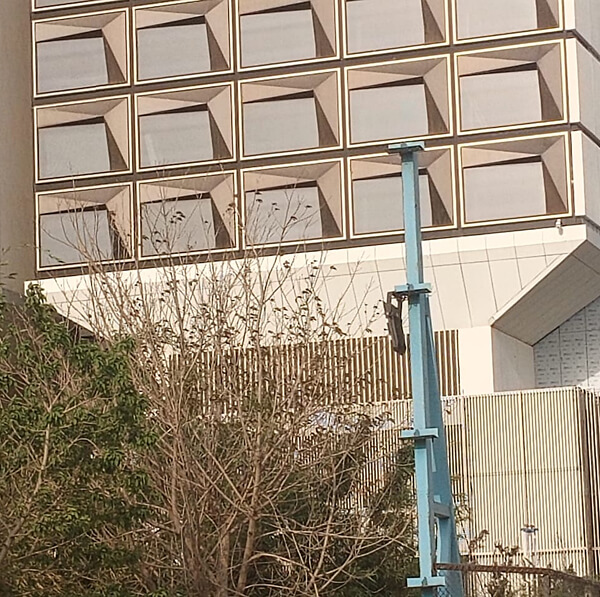

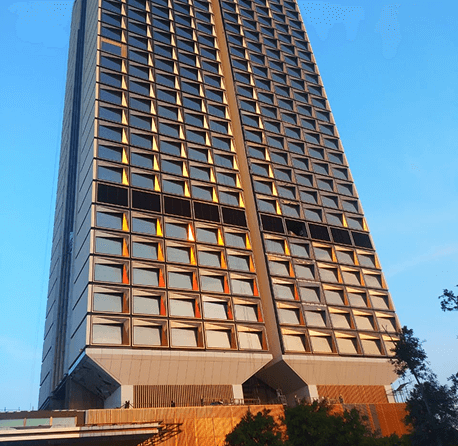

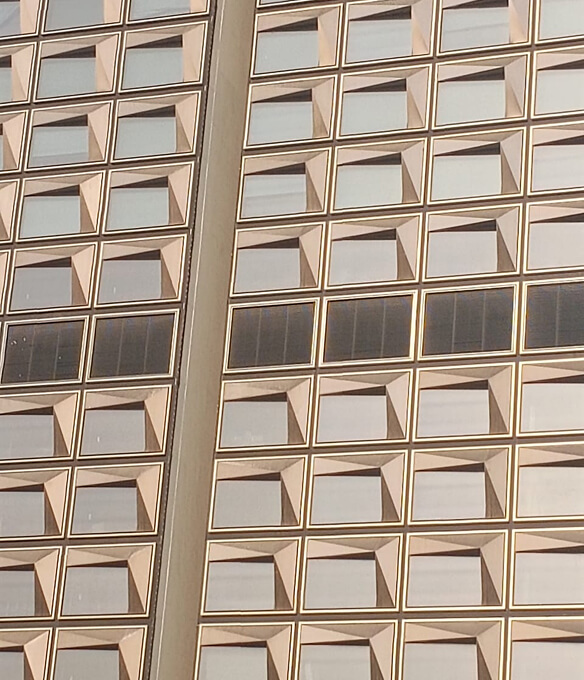

The hotel tower features a unitised curtain wall system with uniquely designed panels measuring 4.6m x 3.5m, enhanced by an ‘Eyebrow’ stainless steel cladding. The exterior is finished with a directional linen pattern and a champagne gold finish for an elegant, modern look.

Recessed Units

Recessed units are clad with black aluminium solid sheets, forming a continuous façade that accentuates the projection of the structure. Integrated façade lighting is included, with cabling passing through the façade back pans for connection to the main MEP systems.

Hotel Lobby and Ground Floor

The hotel lobby and ground floor feature distinct champagne anodized finish frames, including a 3m x 6m revolving gate frame, adding a unique touch to the entrance area.

Unitised System with Stack Joint

The office tower employs a unitised curtain wall system with stack joints at ceiling level, supported by kicker brackets hidden behind the ceiling and anchored at the underside of the concrete slabs for enhanced structural integrity.

Top Hung Windows & Hardware

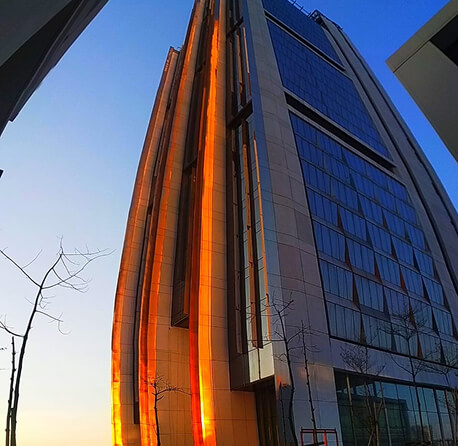

The office tower includes top-hung windows (1.5m x 4.2m, 300Kg) attached with custom hardware and locking points. Stainless steel vertical feature elements are incorporated, with large glass panels measuring 4.5m x 4.2m to enhance the building’s transparency and aesthetics.

Shipping Arrangements

Special oversized units were shipped using open container arrangements to accommodate the unique design elements and dimensions of the office tower’s glazing system.
